MPEG-4 AVC and MPEG-2 Video over IP decoder. Decodes video and audio up to 20 Mbps.

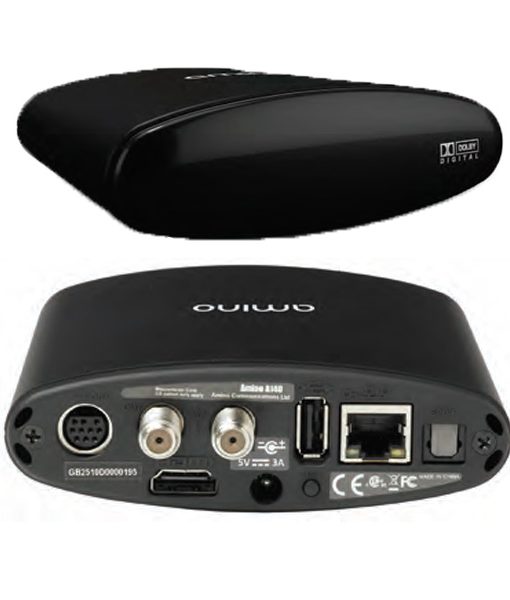

The Amino A140 – the next generation MPEG-2 and MPEG-4 high definition IPTV/OTT set-top-box (STB) for HD deployments.
High definition capability and OTT functionality are becoming must have features in new IPTV deployments worldwide. The Amino A140 is a cost-effective HD STB that provides the perfect balance between price, specification and high performance. Stylish and compact, the AminoA140 now enables IPTV providers to deliver a compelling mix of broadcast, on-demand and OTT services with new features including HTTP live streaming (HLS) and HTML5 technologies.
The A140 is complemented by an extensive range of set-top-box middleware, browsers, conditional access and DRM options. All STB functions can be controlled from a browser using the Amino JMACX system.
Description
Features |
Benefits |
| Can de-interlace content for progressive display | Great picture quality for LCD and Plasma TVs |
| High performance CPU | Provides fast video processing |
| Stylish, pleasing design | Wide range of connectivity in a compact package |
| Mini DIN, HDMI, USB, S-Video, S/PDIF and RF connectors | Provides a selection of input/output connections |
| Software reset button | Provides a method of software recovery in the field |
| Software functions controlled from browser | Allows developers to create effective user interfaces via the Amino JMACX extensions |
| ADKs and SDKs available | Scope for further development of custom software applications |
| Accepts a multicast software image | Enables software upgrades to be deployed in the field |
| Security key signing | Unique protection to each deployment |
Size and weight:
114mm x 100mm x 35mm. 280g (excluding accessories and packaging)
Inputs:
Ethernet 10/100 BaseT via RJ-45 shielded connector
Outputs:
HDMI 1.3a. (excl. Deep colour and DTS audio) with HDCP. S/PDIF (optical). USB2.0. 10-way Mini-DIN for Composite video, Component (YPrPb),RGB, S-Video and analogue audio. RF Mod and loop through.
Power:
5V DC at 1.5A via external power supply Less than 8W typical usage (external supply input voltage 100-240V AC 50-60Hz, 0.8A max, output 5VDC 3A)
Codecs:
MPEG-2 MP@HL, MPEG -4 pt10 AVC/H.264 HP@L4
Video resolutions:
Decodes SD (NTSC, PAL) and HD (up to 720p and 1080i). Displays up to 1080p
Graphics resolutions:
HD graphics up to 1280×720
Audio:
Stereo audio and Dolby 5.1 surround via S-PDIF and HDMI. Dolby Digital+ pass through to external decoder
Security:
Wide selection of DRM and Conditional Access support. HDCP on HDMI. Macrovision (optional).
CGMS-A signalling pass through
Memory:
128MB Flash, 256MB RAM
Front panel LEDs:
Power on/IR command received (Red)
Operating environment:
ETS 300-019-1-3 Class 3.1
EMC conformance:
FCC Part 15 class B. 2004/108/EC EN55022
Safety approvals:
CAN/ CSA-C22.2 No. 60950-1-03 EN60950
RoHS:
2002-95-EC
WEEE:
2002-96-EC
Operating temperature:
0˚C (32˚F) to 40˚C (104˚F)
Storage humidity:
5% to 95% RH (non-condensing)
